Fiber Stripping & Preparation

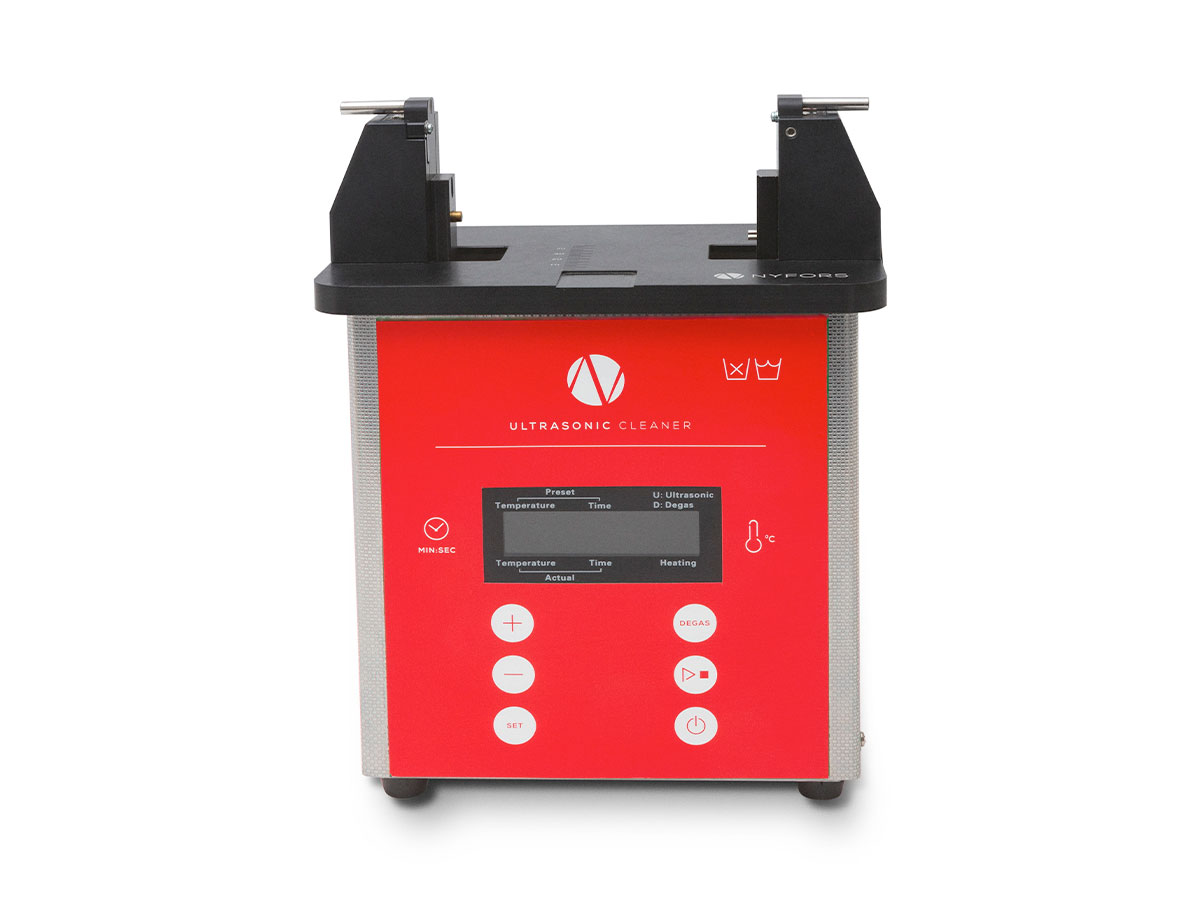

ULTRASONIC FC™

The ULTRASONIC FC features dual cleaning positions and a large 0,7L solvent tank with programmable cleaning duration. It supports most of the common fiber holders on the market such as Fujikura FH-100, FH-60, Fitel S712, Fitel LDF, as well as the NYFORS standard fiber holder platform (AUTOCLEAVER) and the NYFORS MINICOATER 2 fiber holder platform.

Technical Data
Maximum fiber length
40 mm
Input voltage
230 V
Sonic frequency
40 kHz
Heating power
60 W
Compatible solvents
Acetone and isopropanol
Dimensions
180 mm (W) x 114 mm (D) x 240 mm (H)
Weight
1.9 kg
Ultrasonic fiber cleaner features dual cleaning positions
  • Programmable cycle time
  • Non-contact
  • Supports most common fiber holders
  • Large 0.7 L fluid tank
Get Quote !
