NYFORS_WETSTRIPPER MINI_sida 2
Automated and flexible midspan fiber window stripping system
  • Fully automatic

  • Minimal impact on fiber for high strength applications

  • Programmable strip length and fiber sizing

  • WI-FI connectivity

  • Portable with recharable battery

Get Quote !
Fiber Stripping & Preparation

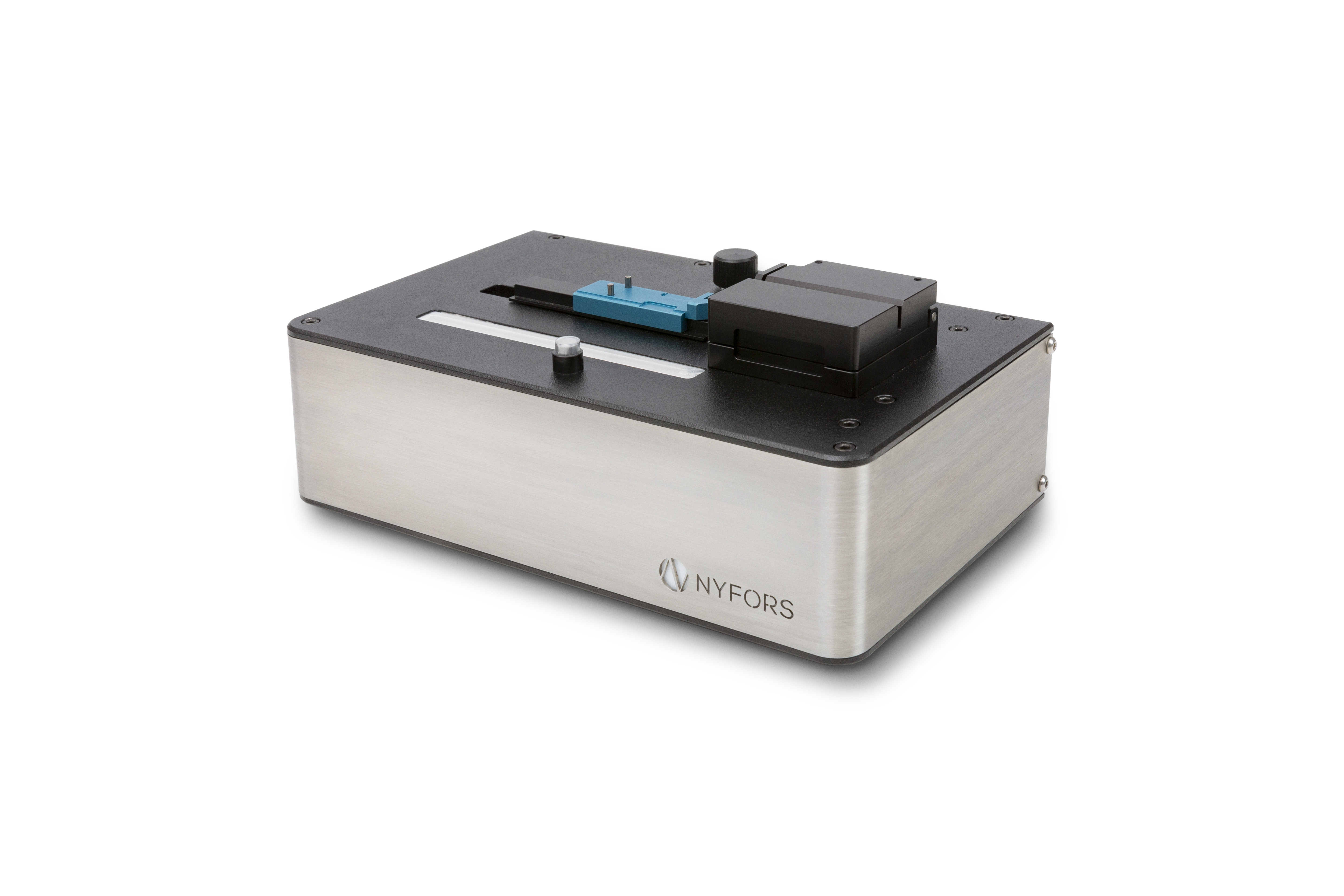

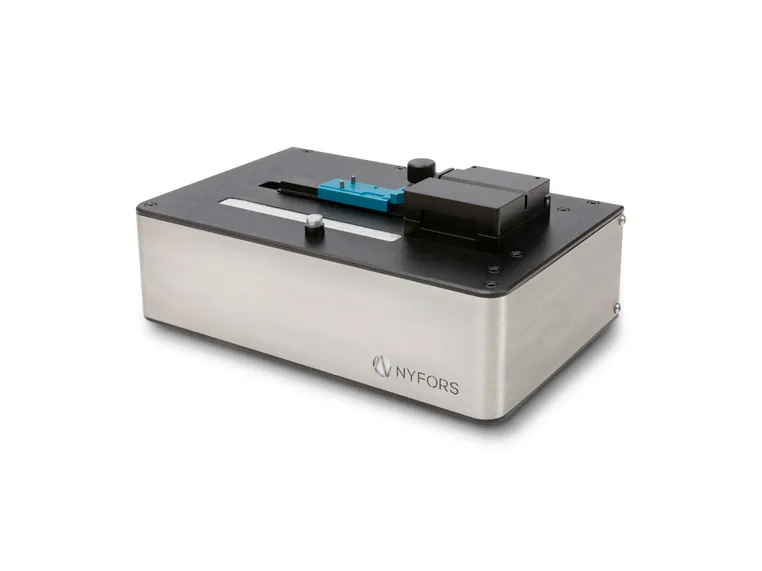

WETSTRIPPER™

The WETSTRIPPER™ is designed for clean and repeatable stripping of optical fibers an accurate positioned blade mechanism and isopropanol as a solvent for stripping. This results in a stripped fiber with exceptional cleanliness and minimal impact on the fibers strength. The machine can be used with a simple push-button or with an intuitive web interface.

To ensure the highest quality, repeatability and high production yield, all critical parameters can be set in software.
The WETSTRIPPER™ can be used as a stand-alone unit or integrated into existing or custom designed subsystems.

Technical Data
Cladding diameter
125-xxxµm
Coating diameter
150-1500µm
Fiber strength
Typical > 60N (SMF-28)
Fiber cleanliness
Free of debris at 400x magnification
Strip length
0 – 50 mm
Pulling speed
1 – 6.5 mm/s
Cycle time
Typical 7 seconds
Power supply
12V external, USB-C PD
Interface
WIFI connectivity, browser application
Compability
Majority of fusion splicing systems
Dimensions
210 mm (W) x 125 mm (D) x 85 mm (H)
Weight
1.8kg

NYFORS part number: 10001724

NYFORS_WETSTRIPPER MINI_sida 2
Fiber Stripping & Preparation

WETSTRIPPER™

The WETSTRIPPER™ is designed for clean and repeatable stripping of optical fibers an accurate positioned blade mechanism and isopropanol as a solvent for stripping. This results in a stripped fiber with exceptional cleanliness and minimal impact on the fibers strength. The machine can be used with a simple push-button or with an intuitive web interface.

To ensure the highest quality, repeatability and high production yield, all critical parameters can be set in software.
The WETSTRIPPER™ can be used as a stand-alone unit or integrated into existing or custom designed subsystems.

Technical Data
Cladding diameter
125-xxxµm
Coating diameter
150-1500µm
Fiber strength
Typical > 60N (SMF-28)
Fiber cleanliness
Free of debris at 400x magnification
Strip length
0 – 50 mm
Pulling speed
1 – 6.5 mm/s
Cycle time
Typical 7 seconds
Power supply
12V external, USB-C PD
Interface
WIFI connectivity, browser application
Compability
Majority of fusion splicing systems
Dimensions
210 mm (W) x 125 mm (D) x 85 mm (H)
Weight
1.8kg

NYFORS part number: 10001724

Automated and flexible midspan fiber window stripping system
  • Fully automatic

  • Minimal impact on fiber for high strength applications

  • Programmable strip length and fiber sizing

  • WI-FI connectivity

  • Portable with recharable battery

Get Quote !
