Description

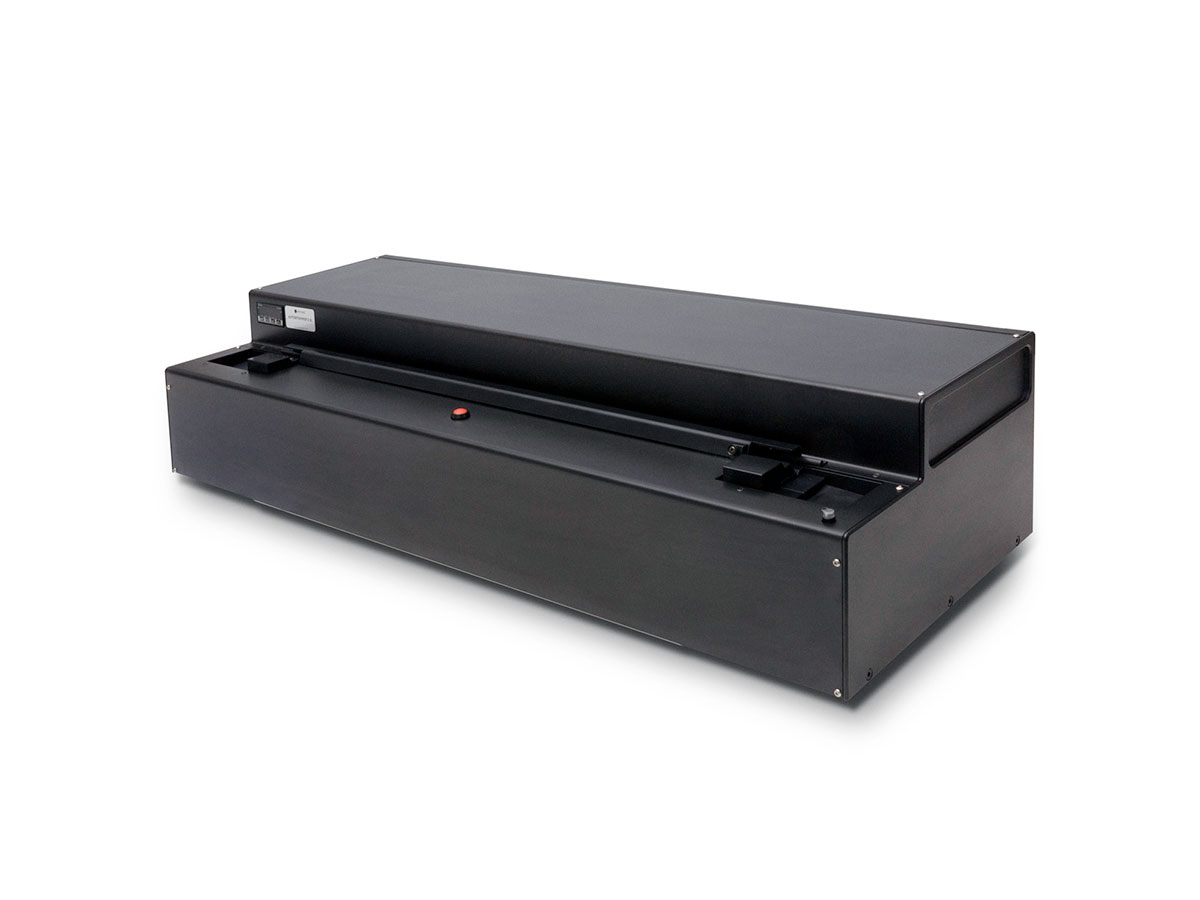

The AUTOSTRIPPER XL™ is designed for fast, chemical-free window stripping of optical fibers, using heated air to accomplish the demanding task of window stripping acrylate-coated fibers with diameters up to 550 μm. The AUTOSTRIPPER XL™ is an extended version of the AUTOSTRIPPER 2™ and features longer strip lengths up to 500 mm.

The AUTOSTRIPPER XL™ meets the need for variable and multiple window strip lengths with high strength and ultra-cleanliness.

A controlled hot air flow instantly vaporizes the fiber coating. The result is a stripped fiber, perfectly cleaned with a substantially higher strength than any mechanical stripping method. The fiber is free of debris at 400x magnification.

The AUTOSTRIPPER XL™ is equipped with a built-in, high tension pull tester, which can proof test the fiber up to 20 N.

To ensure high quality, repeatability and high production yield, all critical processes and parameters such as stripping length, burst time and strength test are controlled by a built-in microprocessor.

The AUTOSTRIPPER XL™ can be used as a stand-alone unit or offered for integration into different subsystems
