CLEAVEMETER 3D+ - ultra-high precision optical fiber end face inspection and 3D reconstruction unit by NYFORS
End Face Inspection

CLEAVEMETER 3D+™

Description

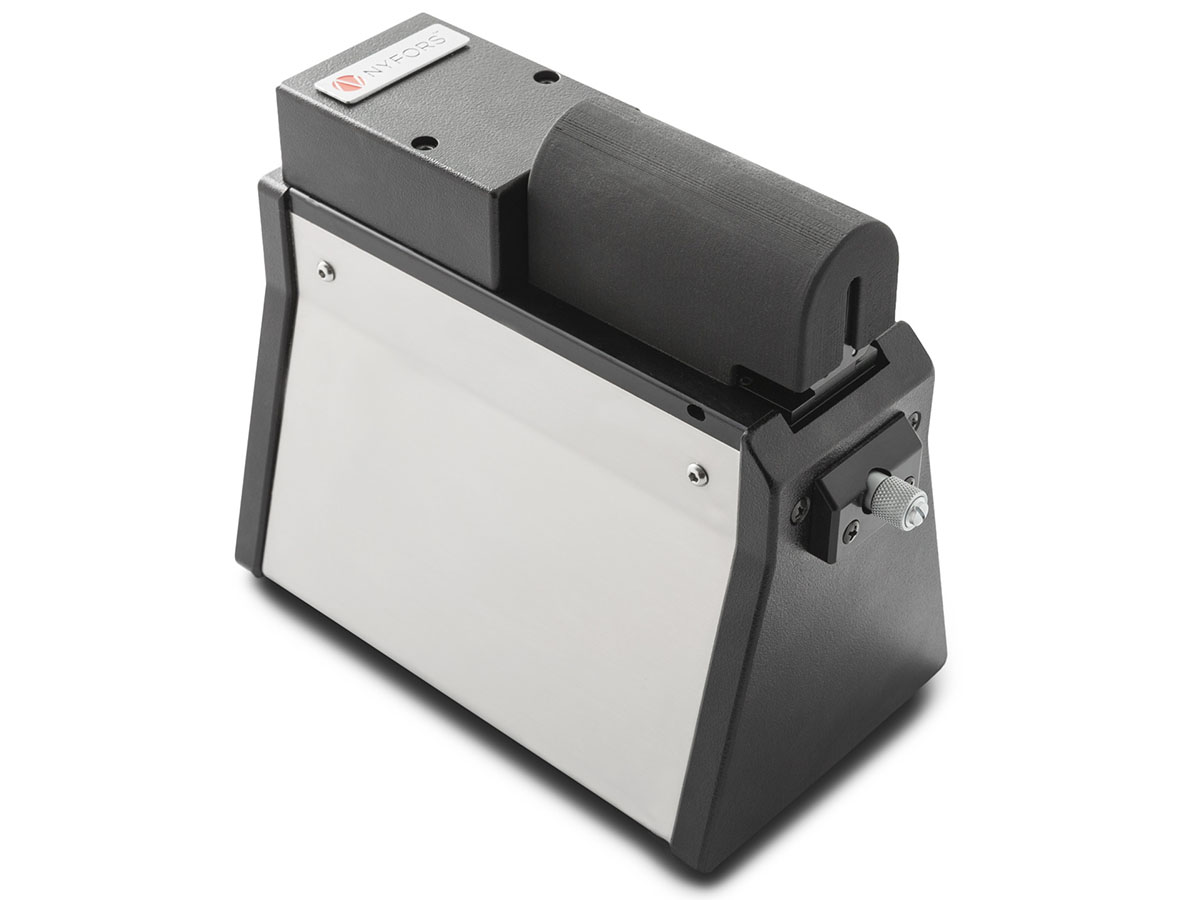

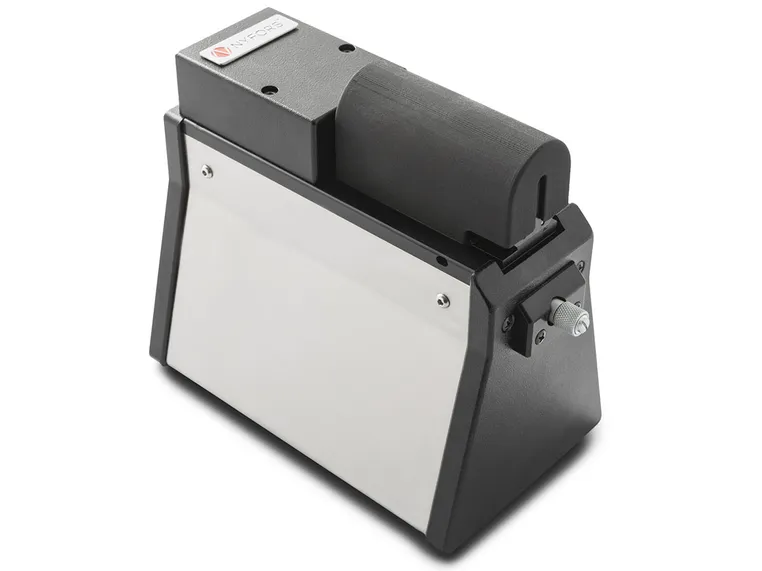

The CLEAVEMETER 3D+™ is a non-contact interferometer designed for high accuracy inspection of end-faces for cleaved or polished optical fibers with cladding diameters of 125 μm to 1200 μm. The CLEAVEMETER 3D+™ gives immediate and precise information on the important end face properties such as flatness, perpendicularity, hackles and dust. Extremely accurate measurements of both cleave angle and surface flatness over arbitrary diameters can be performed on the reconstructed end-face surface. These measurements are carried out automatically, with full operator independence.

This makes the system well-suited not only for detailed cleave quality analysis in laboratory environments but also for close production monitoring. In addition to cleaving angles, the system can also be used to measure a number of other properties such as plane angles, fiber diameters and in-plane distance measurements.

The software allows the user to view the pointwise slope across the whole fiber end-face, a very useful tool for spotting small-scale irregularities and crack propagation behavior. The CLEAVEMETER 3D+™ comes in a small, ergonomic benchtop design and connects to the USB port of a PC running the host application.

Click here to compare our interferometers.

Technical Data
Fiber cladding
125-1200 µm*
Fiber coating
250-1500 µm
Camera resolution
1280×1024 pixels
Image scale
1.25 µm per pixel
Image file format
8-bit JPEG, PNG, TIFF, BMP/24-bit BMP for surface topography
PC connection
USB 2.0 port
Power supply
Through USB port
Dimensions
97 mm (W) x 179 mm (D) x 142 mm (H)
Weight
1.6 kg
Absolute accuracy
0.005° degrees standard deviation*
Relative accuracy
5 %

NYFORS part number: 30100032



*CLEAVEMETER 3D+ unit calibrated by NYFORS for specific fiber cladding.
For more information about system accuracy, please contact us at:
info@nyfors.com

Extreme accuracy end-face interferometer with 3D topography reconstruction
  • Class-leading accuracy – 0.005°
  • Full resolution surface topography reconstruction
  • 2D view of surface topography and pointwise slope
  • 3D view of surface topography with camera and lighting control
  • Extremely accurate, operator-independent measurements of cleave angle
    and surface flatness over arbitrary diameters
  • Optional pass/fail indication of cleave angle for fast operation in
    production environments
