- Fully automatic
- Provides close control of bare fiber length after cleaving
- Low cleave angles < 0.30 degrees
- Designed for production and laboratory environments
- Operator skill independent and easy to use
- Automatic waste fiber collection
- Long-lasting diamond blade

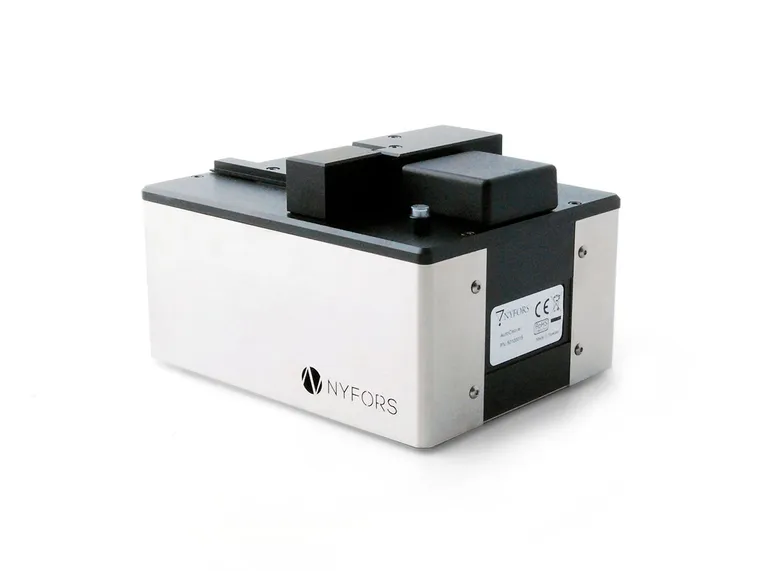

AUTOCLEAVER S1™
Description
This ultra-high precision cleaver is specially designed for production applications where close control of bare fiber length after cleaving is required. It senses the edge of the coating and automatically adjusts the cleave point to meet a specific bare fiber length with high precision. This length is specified by the customer at order and can be fine-tune by software between 0 and 500 µm.
A close control of sensitive cleaving parameters such as tension and exact speed and position of the diamond blade ensures consistent cleaving results with cleave angles typically below 0.3 degrees.
Regarding cleave length, the results of our tests indicate that a standard deviation of less than 0.01 mm can be accomplished when cleaving 125 µm cladded fiber to 3.4 mm bare fiber length, provided that the stripping interfaces have sufficient quality.
The AUTOCLEAVER S1™ comes in an ergonomic benchtop design and is available in different versions for 80 µm and 125 µm fibers.
For more information about available configurations, please contact us with details about your application and requirements.
NYFORS part numbers: 50100028 8 (125 μm version) and 50100029 (80 μm version).
* Fiber-specific handling parts required. See the Product Sheet for more information.
** Not included in the delivery.
Download product sheet AUTOCLEAVER S1™
Description
This ultra-high precision cleaver is specially designed for production applications where close control of bare fiber length after cleaving is required. It senses the edge of the coating and automatically adjusts the cleave point to meet a specific bare fiber length with high precision. This length is specified by the customer at order and can be fine-tune by software between 0 and 500 µm.
A close control of sensitive cleaving parameters such as tension and exact speed and position of the diamond blade ensures consistent cleaving results with cleave angles typically below 0.3 degrees.
Regarding cleave length, the results of our tests indicate that a standard deviation of less than 0.01 mm can be accomplished when cleaving 125 µm cladded fiber to 3.4 mm bare fiber length, provided that the stripping interfaces have sufficient quality.
The AUTOCLEAVER S1™ comes in an ergonomic benchtop design and is available in different versions for 80 µm and 125 µm fibers.
For more information about available configurations, please contact us with details about your application and requirements.
NYFORS part numbers: 50100028 8 (125 μm version) and 50100029 (80 μm version).
* Fiber-specific handling parts required. See the Product Sheet for more information.
** Not included in the delivery.
