- Variable angle cleaving 0 to < 15 degrees
- Large diameter fiber capability (230 to 800 µm)
- Designed for production and laboratory environments
- Operator skill independent and easy to use
- Automatic waste fiber collection
- Long-lasting diamond blade

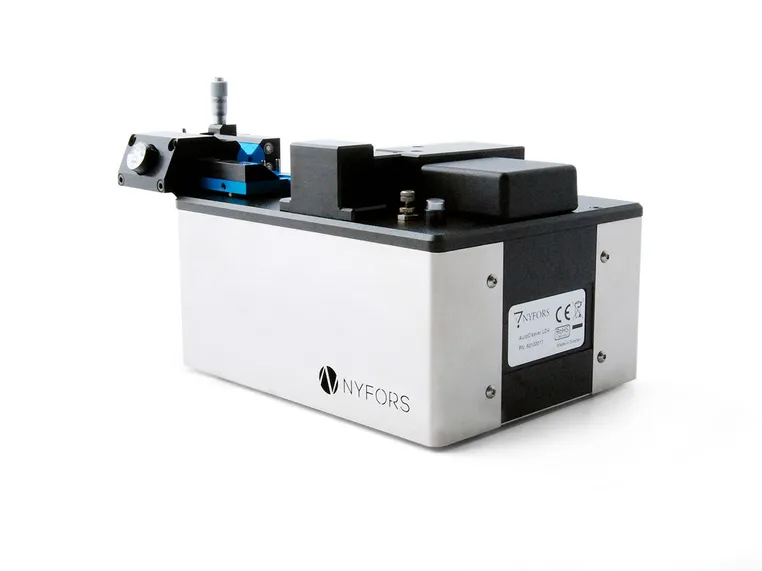

AUTOCLEAVER LDA™
Description
The AUTOCLEAVER LDA™ is an automatic system for the precision cleaving of circular large-diameter fibers (LDF). It is designed to provide both perpendicular and angled cleaving capability on fibers ranging from 230 up to more than 800 µm in diameter.
The cleave angle is set using a micrometer screw positioner allowing the operator to quickly adjust the cleaver for different cleave angles. The patent-pending cleaving process and close control of sensitive cleaving parameters, such as tension and the exact position and speed of the diamond blade, ensure consistent high-quality cleaving results with
When used for non-perpendicular cleaving, the system can be set to produce variable angled cleaves from 0 to < 9 degrees (for 250 µm cladding diameter fibers) and up to more than 15 degrees (for cladding diameters above 450-500 µm) with industry-leading consistency and repeatability.
The cleaver is designed to generate a minimum amount of fiber waste, typically less than 20 mm. An automatic waste disposal system removes any hazardous fiber scraps. It comes in a small ergonomic benchtop design for use on a production or laboratory workbench.
NYFORS part number: 50100017
* Fiber-specific handling parts required. See the Product Sheet for more information.
** Not included in the delivery.
Download product sheet AUTOCLEAVER LDA™
Description
The AUTOCLEAVER LDA™ is an automatic system for the precision cleaving of circular large-diameter fibers (LDF). It is designed to provide both perpendicular and angled cleaving capability on fibers ranging from 230 up to more than 800 µm in diameter.
The cleave angle is set using a micrometer screw positioner allowing the operator to quickly adjust the cleaver for different cleave angles. The patent-pending cleaving process and close control of sensitive cleaving parameters, such as tension and the exact position and speed of the diamond blade, ensure consistent high-quality cleaving results with
When used for non-perpendicular cleaving, the system can be set to produce variable angled cleaves from 0 to < 9 degrees (for 250 µm cladding diameter fibers) and up to more than 15 degrees (for cladding diameters above 450-500 µm) with industry-leading consistency and repeatability.
The cleaver is designed to generate a minimum amount of fiber waste, typically less than 20 mm. An automatic waste disposal system removes any hazardous fiber scraps. It comes in a small ergonomic benchtop design for use on a production or laboratory workbench.
NYFORS part number: 50100017
* Fiber-specific handling parts required. See the Product Sheet for more information.
** Not included in the delivery.
