- Portable with built-in battery
- Long-lasting diamond blade
- Low cleave angles < 0.2 degrees
- Compatible with common factory and field splicers

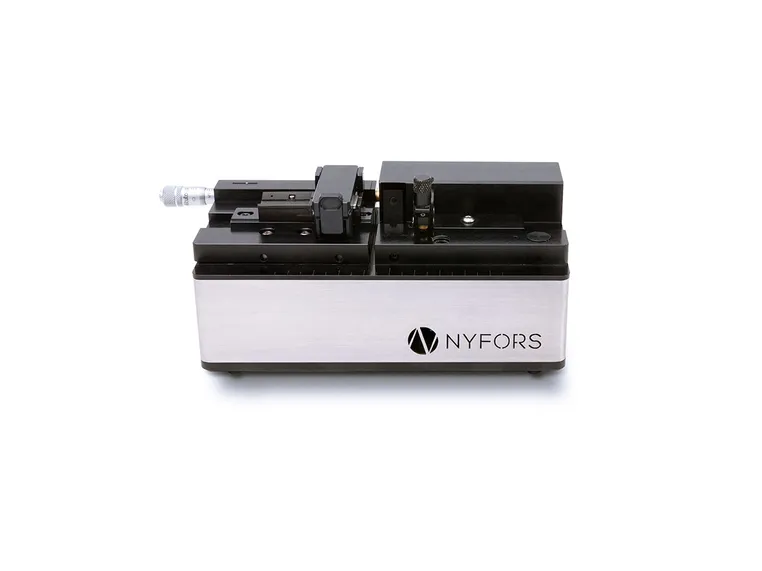

MINICLEAVER™
Description
The small and lightweight MINICLEAVER™ is designed to provide versatile fiber cleaving capability in settings where portability and consistent cleaving results are required. It features a built-in battery and is well suited for use both in field splicing and in laboratory or production environments where available space is limited.
The proven ultrasonic tension and scribe cleaving process ensure high-quality cleaving results with end face angles of less than 0.2 degrees. The MINICLEAVER™ can be set up to accommodate fiber holders from the leading splicer manufacturers to facilitate easy transfer of the fiber directly from cleaver to splicer with no risk of accidentally touching or damaging the fiber end. Changeable Pre-set or variable tension cartridges are provided with the machine and are changed together with the right-hand side fiber clamp when the cleaver is set up for a different fiber dimension.
The MINICLEAVER™ supports most of the common fiber holders on the market such as Fujikura FH-100, FH-60, Fitel S712, Fitel LDF, as well as the NYFORS standard fiber holder platform (AUTOCLEAVER™) and the NYFORS MINICOATER™ 2 fiber holder platform.
Typical < 0.3 degrees (400 μm)
NYFORS part number: 20100103
* Fiber-specific handling parts required. See the Product Sheet for more information.
** Not included in the delivery.
Download product sheet MINICLEAVER™
Description
The small and lightweight MINICLEAVER™ is designed to provide versatile fiber cleaving capability in settings where portability and consistent cleaving results are required. It features a built-in battery and is well suited for use both in field splicing and in laboratory or production environments where available space is limited.
The proven ultrasonic tension and scribe cleaving process ensure high-quality cleaving results with end face angles of less than 0.2 degrees. The MINICLEAVER™ can be set up to accommodate fiber holders from the leading splicer manufacturers to facilitate easy transfer of the fiber directly from cleaver to splicer with no risk of accidentally touching or damaging the fiber end. Changeable Pre-set or variable tension cartridges are provided with the machine and are changed together with the right-hand side fiber clamp when the cleaver is set up for a different fiber dimension.
The MINICLEAVER™ supports most of the common fiber holders on the market such as Fujikura FH-100, FH-60, Fitel S712, Fitel LDF, as well as the NYFORS standard fiber holder platform (AUTOCLEAVER™) and the NYFORS MINICOATER™ 2 fiber holder platform.
Typical < 0.3 degrees (400 μm)
NYFORS part number: 20100103
* Fiber-specific handling parts required. See the Product Sheet for more information.
** Not included in the delivery.
- Portable with built-in battery
- Long-lasting diamond blade
- Low cleave angles < 0.2 degrees
- Compatible with common factory and field splicers
NYFORS is your innovative supplier of advanced glass processing and optical fiber preparation equipment for high strength and specialty splicing operations.
